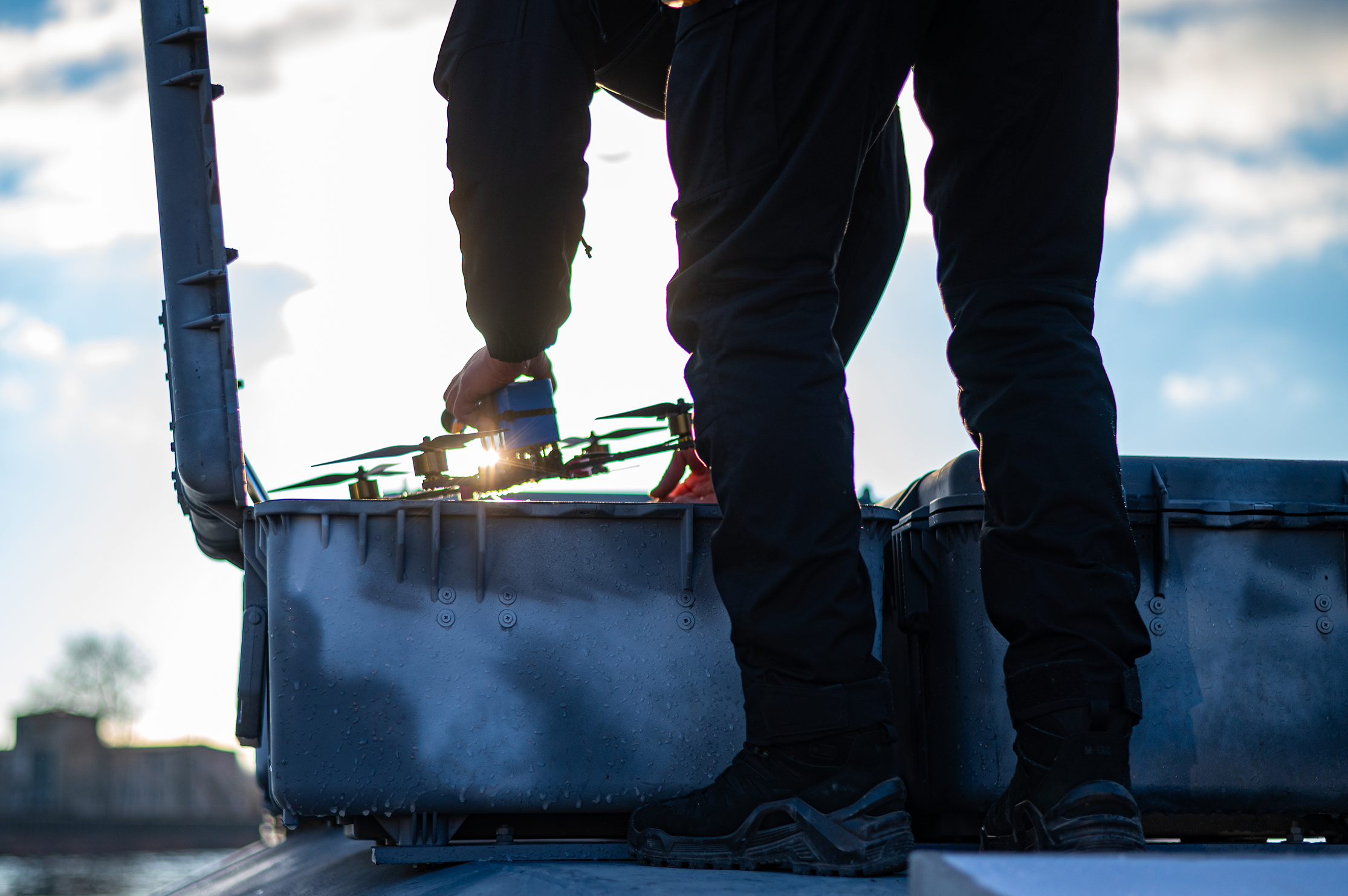

FPV Boxes
We have developed universal boxes for the transportation and launch of FPV drones. They can be installed on pickups, trailers, maritime drones, or along the perimeter of a position or headquarters. Deployment and FPV launch take less than 10 minutes, and the interval between launches is no more than 5 minutes.
Main Characteristics
(7)Purpose
For storage, transportation, and rapid preparation of FPV drones for combat deployment
Deployment Locations
Mounted on pickup trucks
Installed on trailers
Positioned along the perimeter of headquarters and operational sites
Integrated into maritime systems
Box Material
Plastic (polyamide): lightweight, durable, resistant to environmental factors
Aluminum frame: ensures structural rigidity with minimal weight
Armament
Number of FPV boxes per system: from 3 units
FPV drone type: 10-inch kamikaze quadcopters
Deployment and Launch Time
1 FPV box: up to 5 min
3 FPV boxes: up to 40 min
Reload Time
1 FPV box: up to 15 min
4 FPV boxes: up to 60 min
Advantages
Rapid delivery of FPV drones to the combat zone, fast deployment, and repositioning
Strike support, destruction of armored vehicles, fortifications, and enemy personnel
Stable satellite communication
Battlefield superiority through speed, precision, and maneuverability
FPV 10-Inch Quadcopter – MAC THUNDER
(15)Frame Size
297 x 297 x 35 mm
Motors
900 KV
Flight Stack
F405 – 60 A
Video Frequency
from 4.9 to 6.0 GHz
Video Transmitter Power
3 W
Control Frequency
820 MHz and 2.4 GHz ELRS (frequency adjustable)
Battery
6S3P Samsung 50S 15000 mAh
Flight Speed
Maximum – 140 km/h
Cruising – 70 km/h
Deployment & Pre-Flight Preparation Time
up to 3 minutes
Payload Capacity
up to 3000 g
Maximum Flight Altitude
up to 1,000 m
Maximum Flight Range
up to 18,000 m
Target Recognition Range
up to 200 m
Payload Initiator
autonomous initiation board
Quadcopter control and video transmission can also be performed via fiber-optic cable with a spool length of up to 15,000 m
