Maritime Deployment System

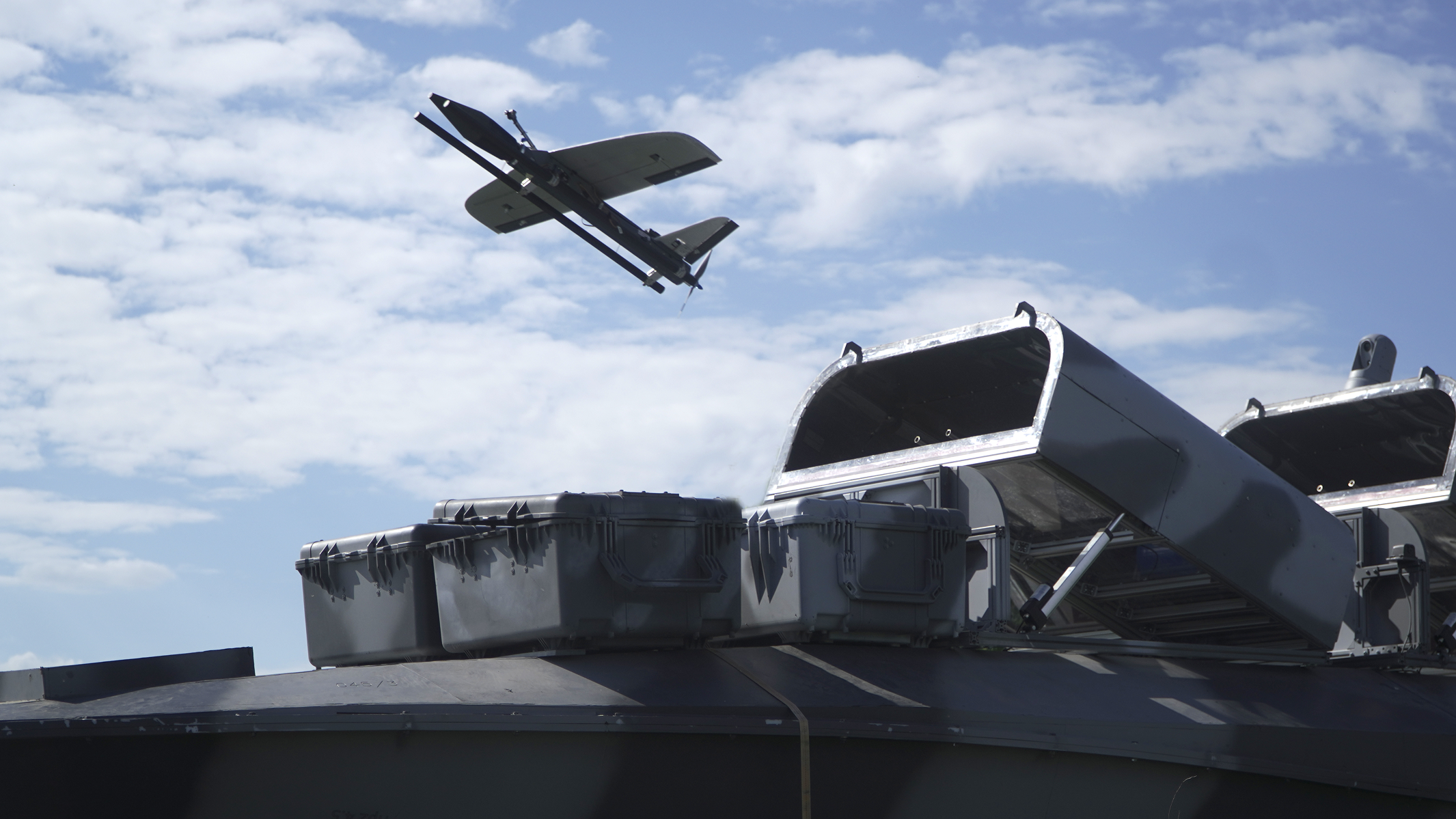

MAC Osa Launcher
A maritime drone launches a kamikaze fixed-wing drone against enemy targets, while an experienced operator manages the process from hundreds of kilometers away. This is the concept of our Osa (Wasp) maritime installation. The maritime drone has a strategic configuration: a repeater quadcopter, the "Morok-5" EW system, and satellite link via Starlink. Deployment time for such an installation is up to 20 minutes, and one strike UAV can carry a 2 kg payload.
Launcher Type: “Osa”
(6)Drone Type
Osa wing-type drone, pusher propeller
Communication with Launcher
Satellite
Protected Communication Bands
270–530 MHz, 700–1050 MHz, 2200–2600 MHz
Analog Video Band
4.9–6.0 GHz
Payload
1200–2000 g
Battery
4s4p Molicel P45B
Osa Launcher with MAC Link Drone Relay
(7)Type
Osa wing-type drone, pusher propeller, and 10-inch quadcopter “relay”
FPV Drone Boxes (Relay)
1 unit per launcher
"Osa" Drones per Launcher
1 unit
FPV Relay Drones per Box
1 unit
Communication with Launcher
Satellite
Deployment & Launch Time for One Osa
up to 5 minutes
Operating Time of FPV Relay Drone
up to 45 minutes
FPV wing-type drone Osa
(10)Wingspan
1153 mm
Fuselage Length
880 mm
Maximum Takeoff Weight
up to 5000 g
Speeds
Maximum: 175 km/h,
Cruise: 90 km/h,
Stall: 50 km/h
Flight Altitude
Maximum – 4000 m
Operational – 100 m
Mission
Single-use kamikaze-style drone for real-time target detection and engagement
Communication
Satellite modem STARLINK, combined with ground station or relay drone
Maximum Range
up to 70 km, depending on communication module via relay
Payload Capacity
500–2000 g, depending on selected communication module via relay
Battery
Samsung 50S 6S3P 15000 mAh
