Maritime Drone

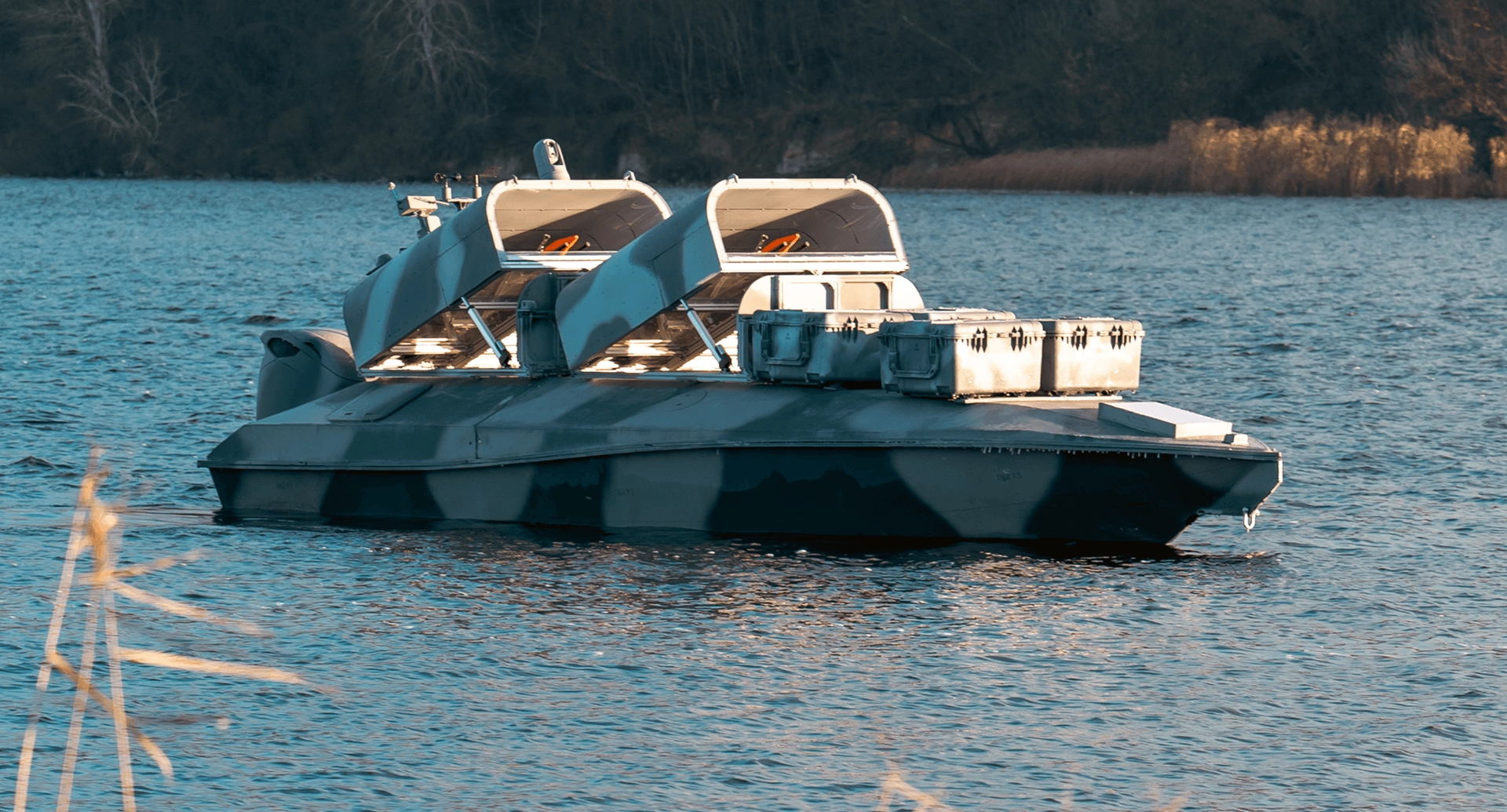

Katran X1

The KATRAN X1 maritime drone is a stealthy scout and "courier" It delivers FPV drones for enemy engagement and can perform escort and patrolling functions. It reaches speeds of up to 85 km/h and covers 1,500 km without refueling.

Katran X1
Katran X1
Additional data
(3)

  • Combat module for drones

  • "Osa" drone

  • Kymeta

General characteristics
(11)

  • Length

    7.68 m

  • Width

    2.29 m

  • Height

    2.9 m

  • Fuel tank capacity

    1 500 l

  • Maximum speed

    85 km/h

  • Cruising speed

    46 km/h

  • Range

    1,500 km

  • Fuel consumption

    93 l/h

  • Armament equipment

    • FPV 10" – quadcopters 3 pcs. (range 15 km)

    • FPV 10" – drone-repeater

    • FPV – aircraft type 2 pcs. (range up to 60 km)

  • Additional equipment

    • communication system

    • camera system

    • control system

    • power system

    • optional: +500 kg warhead

  • Number of operators

    9 people:

    • vessel pilot

    • navigator

    • 2 UAV navigators

    • 5 UAV operators

Vessel Life Support Systems
(3)

  • Hull and systems damage detection system

  • Water pumping system in case of damage

  • Power supply system providing up to 72 hours of autonomous operation

Control System Configuration
(12)

  • Satellite communication channel

  • Control system

  • Autopilot

  • Coordination system with the command post

  • Synchronization system with fixed-wing reconnaissance UAVs

  • Real-time reconnaissance data update system for priority targets

  • Station-keeping system for multi-day standby at a designated position

  • AI for target detection and acquisition

  • AI for navigation control and obstacle avoidance

  • AI for control in case of complete communication loss

  • AI for target identification, transmission of target type and coordinates to the command post, and instant synchronization with the overall combat map

  • Target recognition range: up to 7 km

Usage
(2)

  • Reusable (the vessel is designed to return to base after mission completion)

  • The vessel is used for:

    • fire engagement of a vessel’s deck or targets located on it

    • striking small boats during amphibious landing operations

    • striking port infrastructure (radar systems, command posts, firing positions, light armored vehicles, enemy air defense elements, port fuel storage and refueling facilities and enemy troop concentrations)
