Maritime Drone

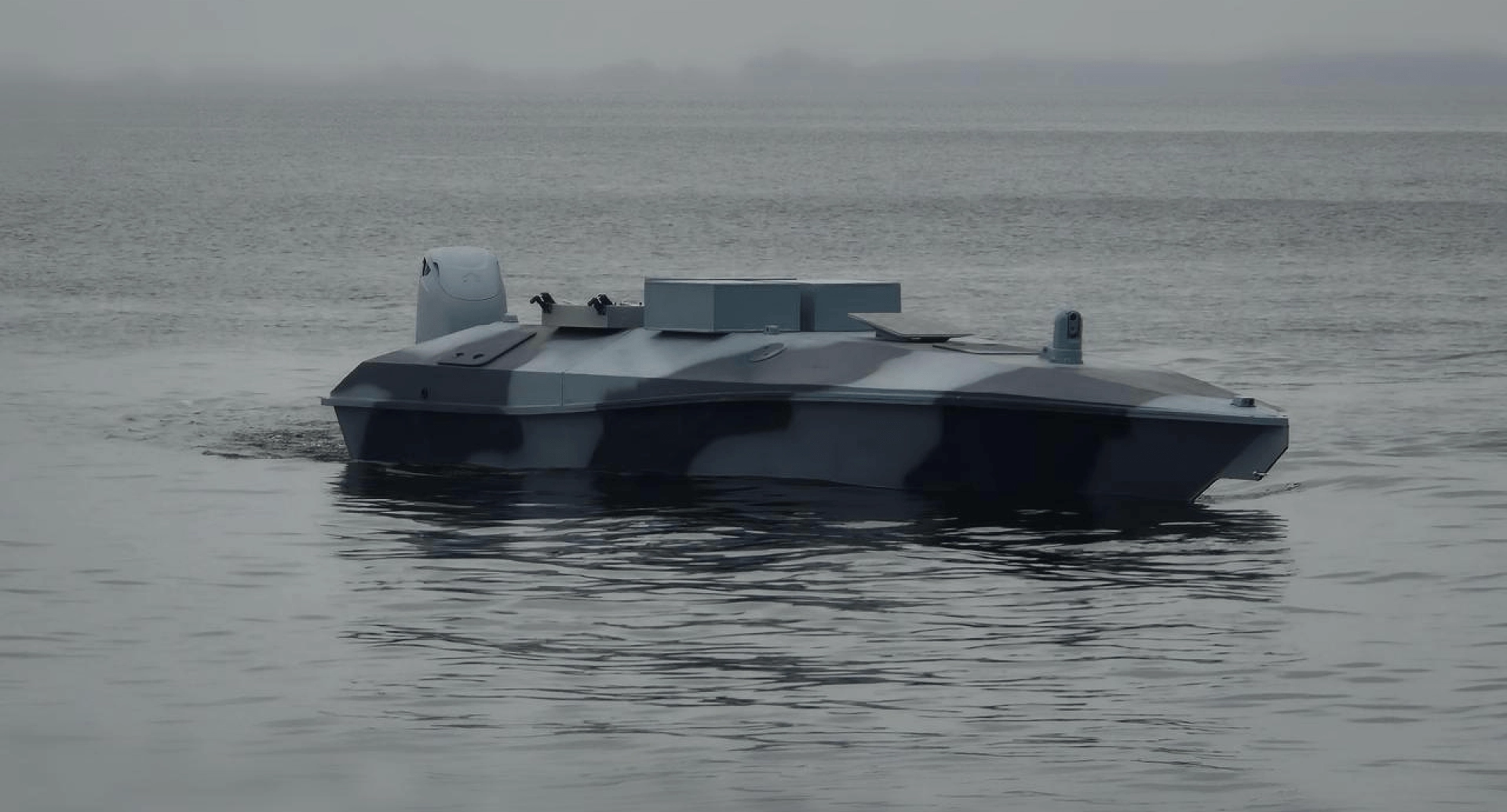

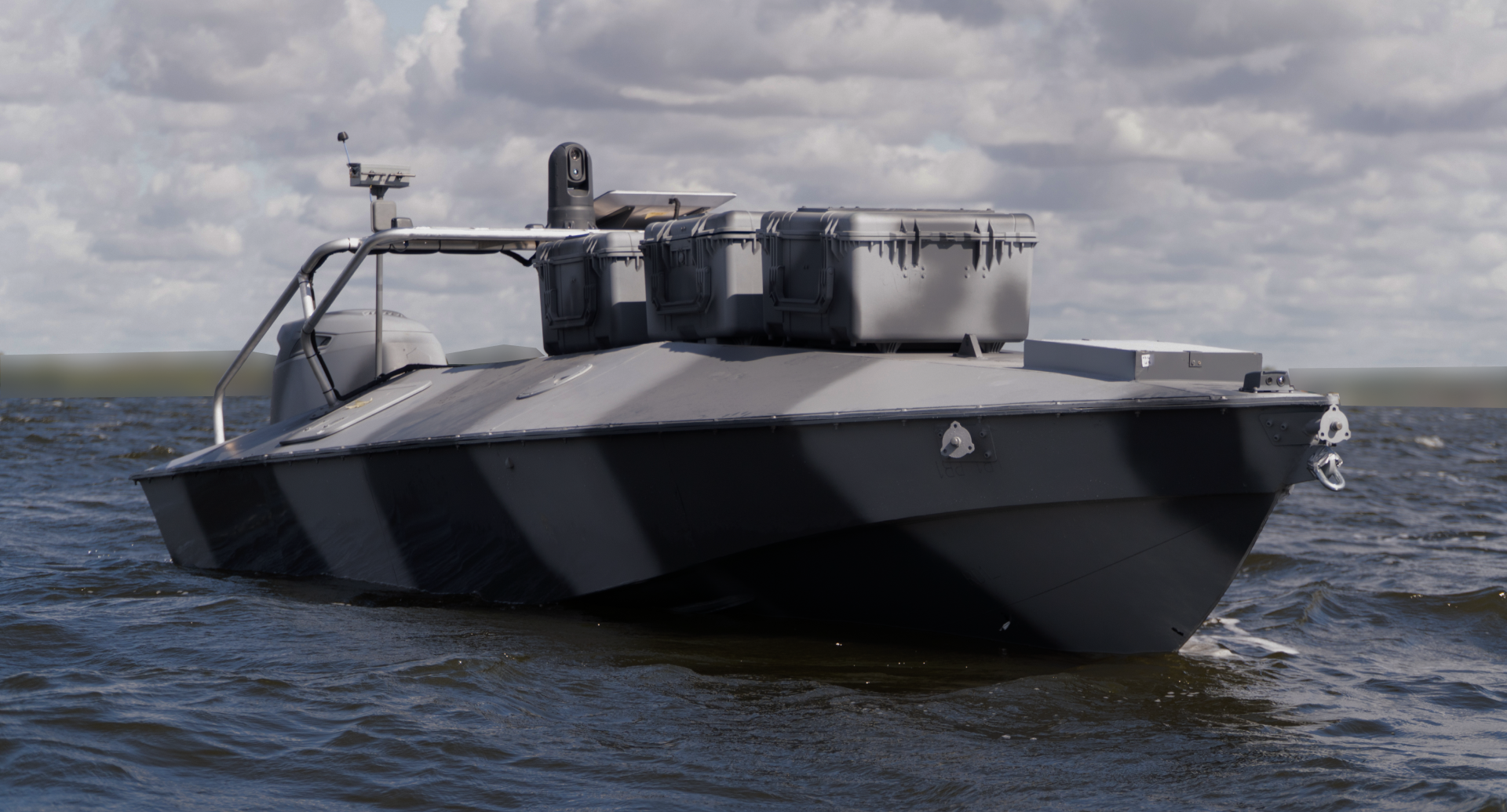

Katran X3
Its mission is to attack and destroy. This Katran-kamikaze is designed for precision strikes on enemy vessels, submarines, and other targets. The drone's warhead mass is 300 kg; additionally, Katran X3 carries three FPV drones on board. The maximum speed of this Katran version is 80 km/h, with a range of 1,600 km.
Additional data
(4)Outboard motor
Satellite communication channel
МAС VIEW
МAС VIEW mini
General Characteristics
(11)Length
6.5 m
Width
2.2 m
Height
2.5 m
Fuel Tank
1650 L
Maximum Speed
80 km/h
Cruising Speed
49 km/h
Fuel Consumption
90 L/h
Range (at cruising speed)
1,600 km
Armament Configuration
Kamikaze (warhead mass – 300 kg)

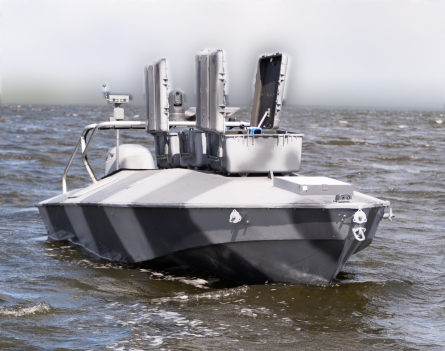

FPV 10" – 3 drones (operational range up to 15 km)
Additional equipment

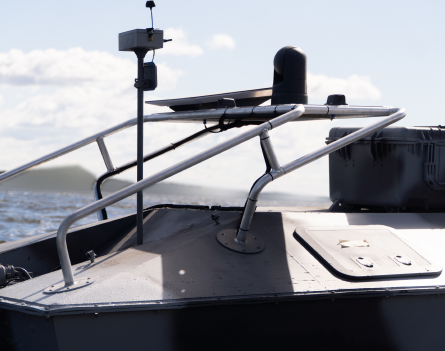

communication system
camera system
control system
power system
Number of operators
6 people:
vessel pilot
navigator
UAV navigator
3 UAV operators
Vessel Life-Support Systems
(2)Hull and subsystem damage detection system
Flood control / water pumping system in case of hull breach
Control System Configuration
(12)Satellite communication channel
Control system
Autopilot
Coordination system with the command post
Synchronization system with fixed-wing reconnaissance UAVs
Real-time reconnaissance data update system for priority targets
Station-keeping system for multi-day standby at a designated position
AI for target detection and acquisition
AI for navigation control and obstacle avoidance
AI for control in case of complete communication loss
AI for target identification, transmission of target type and coordinates to the command post, and instant synchronization with the overall combat map
Target recognition range: up to 7 km
Usage
(2)Single-use (the aircraft returns if no targets are detected)
Designed for:
Engaging enemy vessels
Striking port infrastructure
Neutralizing surface components of port and industrial defense systems
More photo/video materials from Katran X3
