Marine drone

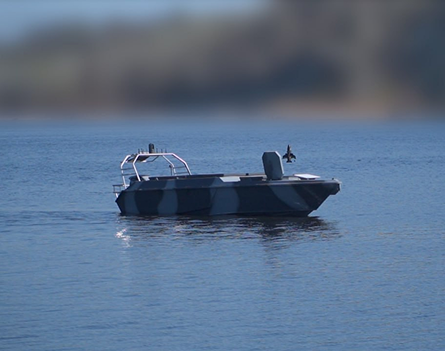

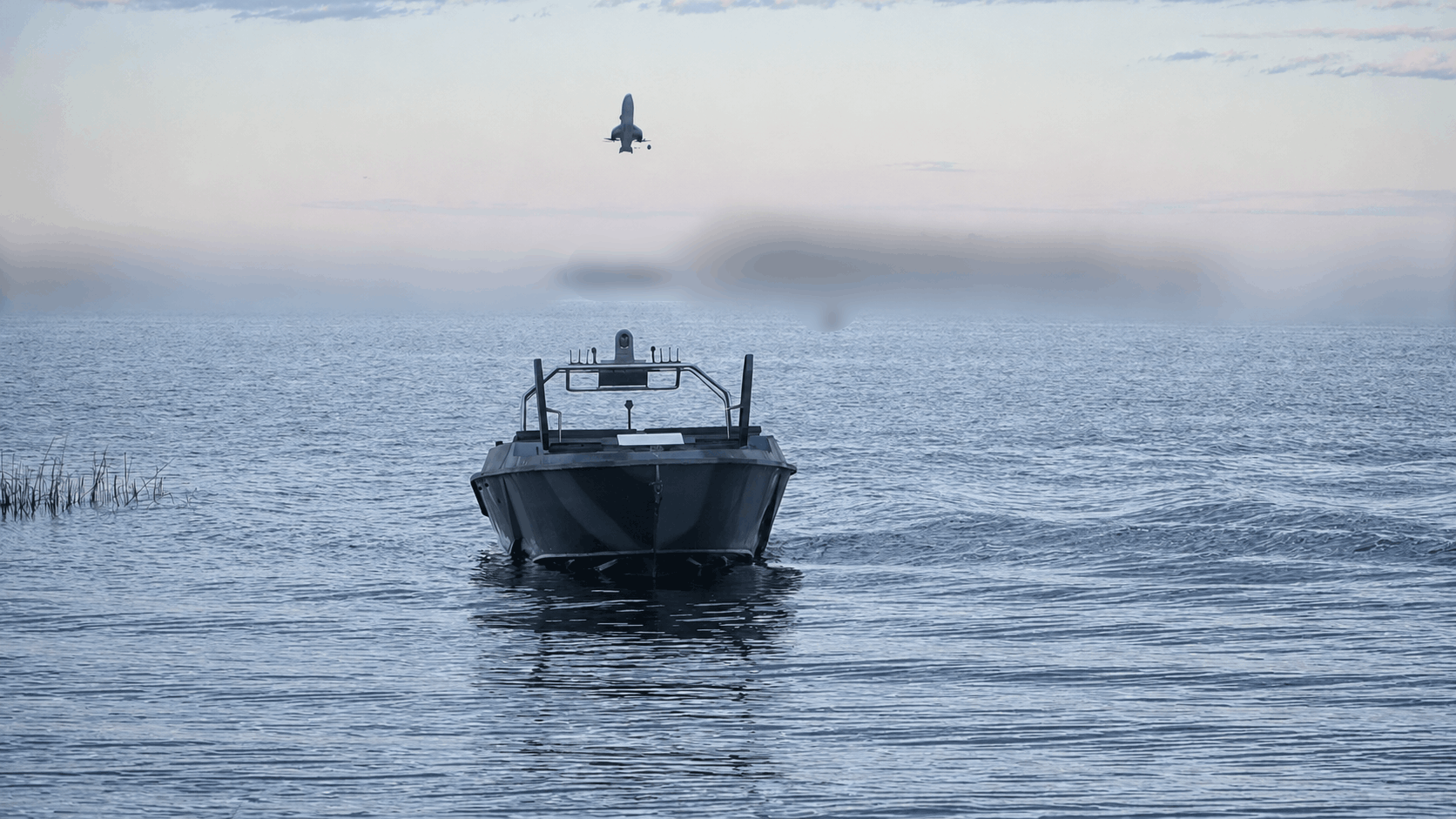

Katran X1.2
KATRAN X1.2 is designed for covert deployment and launch of FPV strike drones for the purpose of massive destruction of targets on the shore or at sea. The system is designed to conduct combined operations to destroy enemy equipment or facilities.
General characteristics
(11)Length
9.11 m
Width
2.79 m
Height
1.45 m
Fuel tank capacity
1 100 l
Maximum speed
93 km/h
Cruising speed
65 km/h
Power reserve
1,600 km
Armament equipment
27 MAC Dead Fly FPV drones
or
9 MAC Thunder 10 FPV drones
4 OSA wing FPV drones
Number of operators
Flight pilot
Flight navigator
FPV pilots (depending on armament)
Additional equipment
Communication system
camera system
control system
power system
Additional equipment (if necessary)
NEMESIS
2 R73 complex missiles
Vessel Life Support Systems
(3)Hull and systems damage detection system
Water pumping system in case of damage
Power supply system providing up to 72 hours of autonomous operation
Control System Configuration
(7)Satellite communication channel
Control system
Autopilot
Coordination system with the command post
Station-keeping system for multi-day standby at a designated position
AI for target detection and acquisition
AI for control in case of complete communication loss
Usage
(3)Reusable (designed to return to base after mission completion)
Can perform a kamikaze function
Main Tasks
delivery of FPV drones
patrolling, surveillance, reconnaissance, and cover
Possible use for strikes against: ship decks during attacks on vessels; small boats during landing operations; port infrastructure (radar stations, command posts, fire support positions); light armored vehicles; enemy air defense elements; port oil and fuel facilities and refueling stations; concentrations of enemy personnel
Katran Х1.2 integrated with coordination and control systems for conducting strike missions against priority targets
