Interceptor Drone

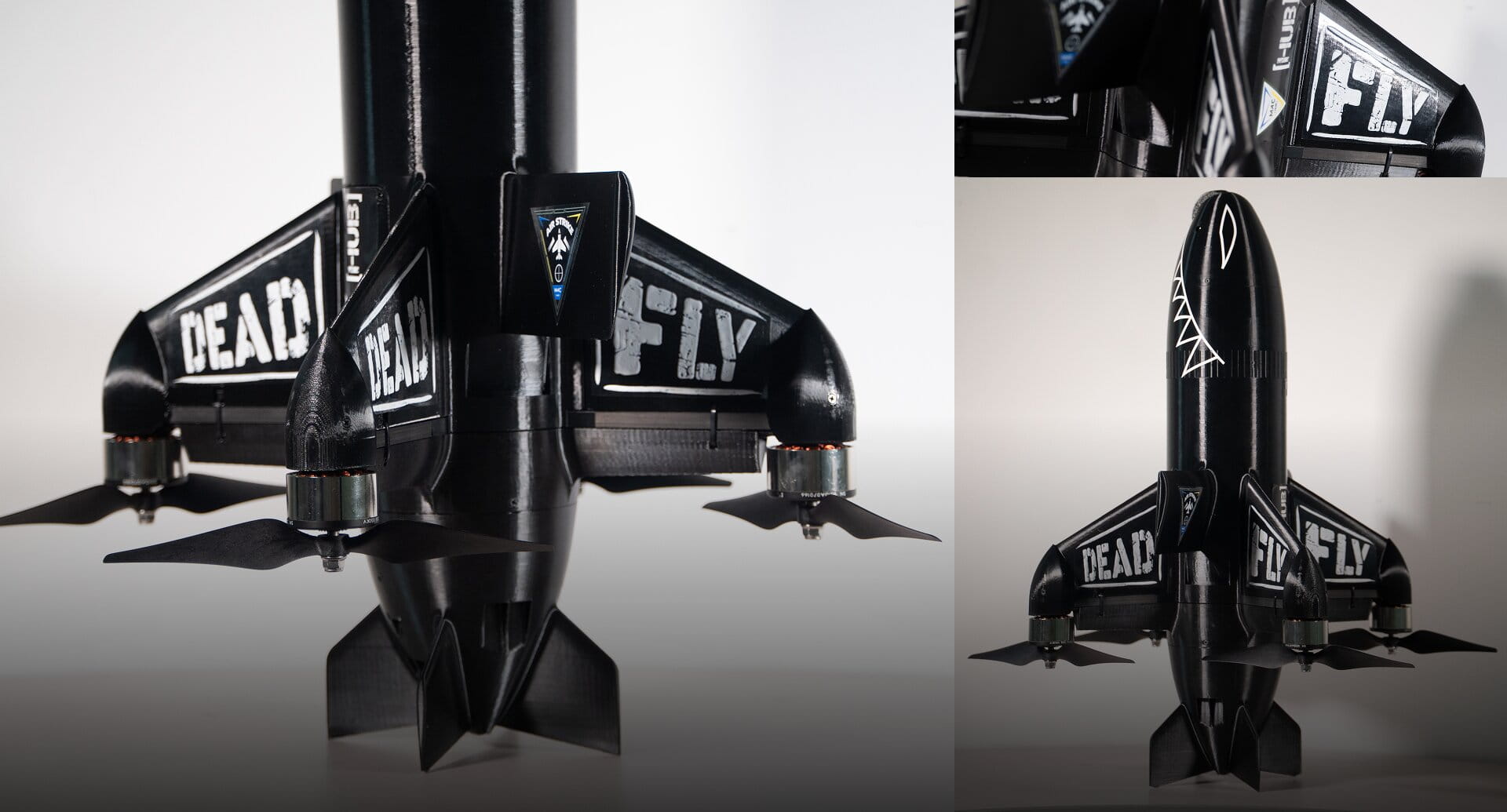

MAC Dead Fly
MAC Dead Fly is a tactical interceptor quadcopter designed to destroy enemy UAVs like the Shahed-136, FPV drones, and other small targets. The cost of a single drone is significantly lower than the price of a potential target, making MAC Dead Fly a cost-effective alternative to expensive air defense systems. The drone is equipped with a high-quality thermal imaging camera, enabling the operator to see targets in total darkness.
Operational range: up to 20 km
Launch preparation time: up to 5 minutes
Configuration: Multirotor loitering munition (quadrotor configuration)
High Maneuverability
The quadrotor configuration combined with FPV control in Acro mode allows maneuvering required for effective target engagement.
High Mobility
Vertical take-off enables launch without the use of additional launch systems.
High technological efficiency and simplicity of production
The system is designed using readily available materials and components. All structural elements are suitable for serial production.
General characteristics
(3)Operational range:
up to 20 km
Launch preparation time:
up to 5 minutes
Configuration:
Multirotor loitering munition (quadrotor configuration)
MAC Dead Fly 01
(8)Target type
Against Shahed UAVs
Dimensions
Height - 500 mm
Width (including propellers) - 530 mm
Speed
Minimum - 70 km/h
Maximum - 350 km/h
Cruise - 200 km/h
Total launch weight
3,700 g
Maximum operating altitude
up to 5,000 m
Warhead weight
500 g
Guidance system
Manual visual guidance
Optional:
fixed-wing attachment
MAC Dead Fly 02
(7)Target type
Against “Orlan UAVs”
Dimensions
Height - 500 mm
Width (including propellers) - 490 mm
Speed
Minimum - 70 km/h
Maximum - 250 km/h
Cruise - 150 km/h
Total launch weight
2,100 g
Maximum operating altitude
up to 5,000 m
Warhead weight
350 g
Guidance system
Manual visual guidance
MAC Dead Fly 03
(7)Target type
Against ground targets
Dimensions
Height - 500 mm
Width (including propellers) - 530 mm
Speed
Minimum - 70 km/h
Maximum - 350 km/h
Cruise - 150 km/h
Total launch weight
3,700 g
Maximum operating altitude
up to 2,000 m
Warhead weight
500 g
Guidance system
Autonomous Terminal Guidance
More photo/video materials from MAC Dead Fly
