Interceptor drone

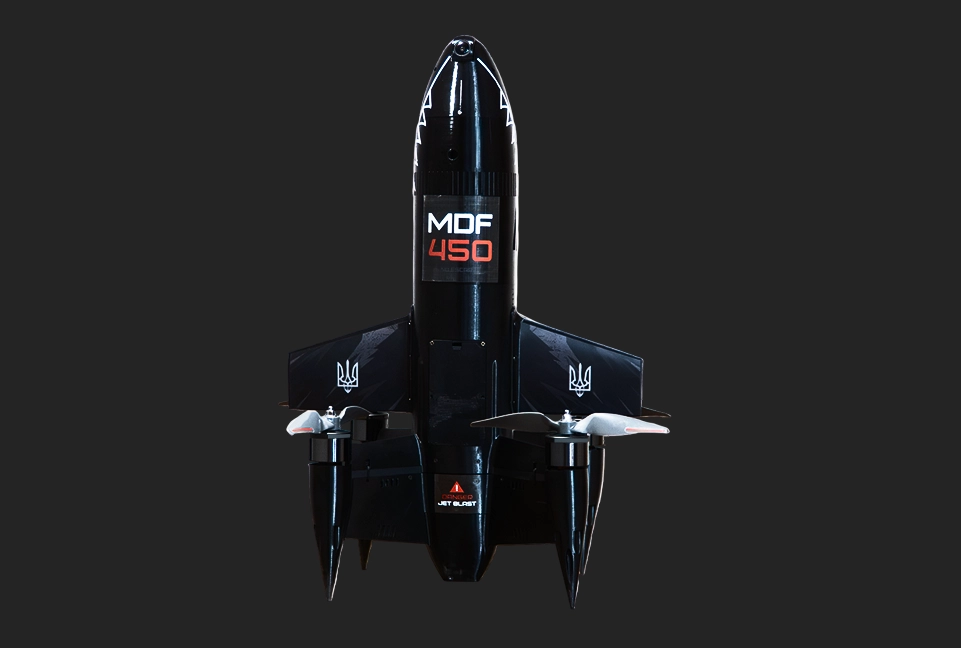

MAC Dead Fly 450
Created to counter jet-powered drones. MAC Dead Fly 450 offers high tactical and technical characteristics and low production cost. It is fast to manufacture and highly versatile in application: it can be launched from aircraft wings, maritime drones, and from the ground.
Equipped with modern software
for target detection, recognition, tracking, guidance, and engagement, but performs its mission exclusively under human control. For this purpose, the interceptor has two control modes: manual and manual with an automatic target recognition function.
Has electronic and mechanical protection
against unintended warhead activation and a built-in warhead module monitoring system. The type of warhead can be changed according to the customer’s requirements.
General Specifications
(6)Speed
Minimum - 140 km/h
Maximum - 450 km/h
Cruise - 200 km/h
Flight altitude
Maximum - up to 5,000 m
Operating - 500–4,000 m
Maximum takeoff weight
5,500 g
Warhead weight
500 g
Takeoff method
vertical
Powerplant type
electric
Electro-Optical Reconnaissance Systems
(5)Night camera
analog thermal imaging camera
Day camera
front-facing FPV camera
Detection range for typical targets
500 m
Deployment or closure time of the unmanned system
up to 15 min
Preparation time for the launch of the next UAV
up to 10 min
Channel Characteristics (Frequency)
(3)Control, telemetry
915/2.4/500–1000 MHz
Video
5.8/6.1–7.2 GHz
Number of ground control stations
1 unit per system
Initiation Board
(3)Activation threshold
7–12 g
Response time
less than 1 ms
Activation algorithm
two-stage (mechanical arming + inertial impulse)
Operating Range
(5)Temperature
from –10 to +35 °C
Precipitation (snow, rain, fog)
no precipitation
Air humidity
60%
Wind speed
7 m/s
Pressure
405 mmHg
