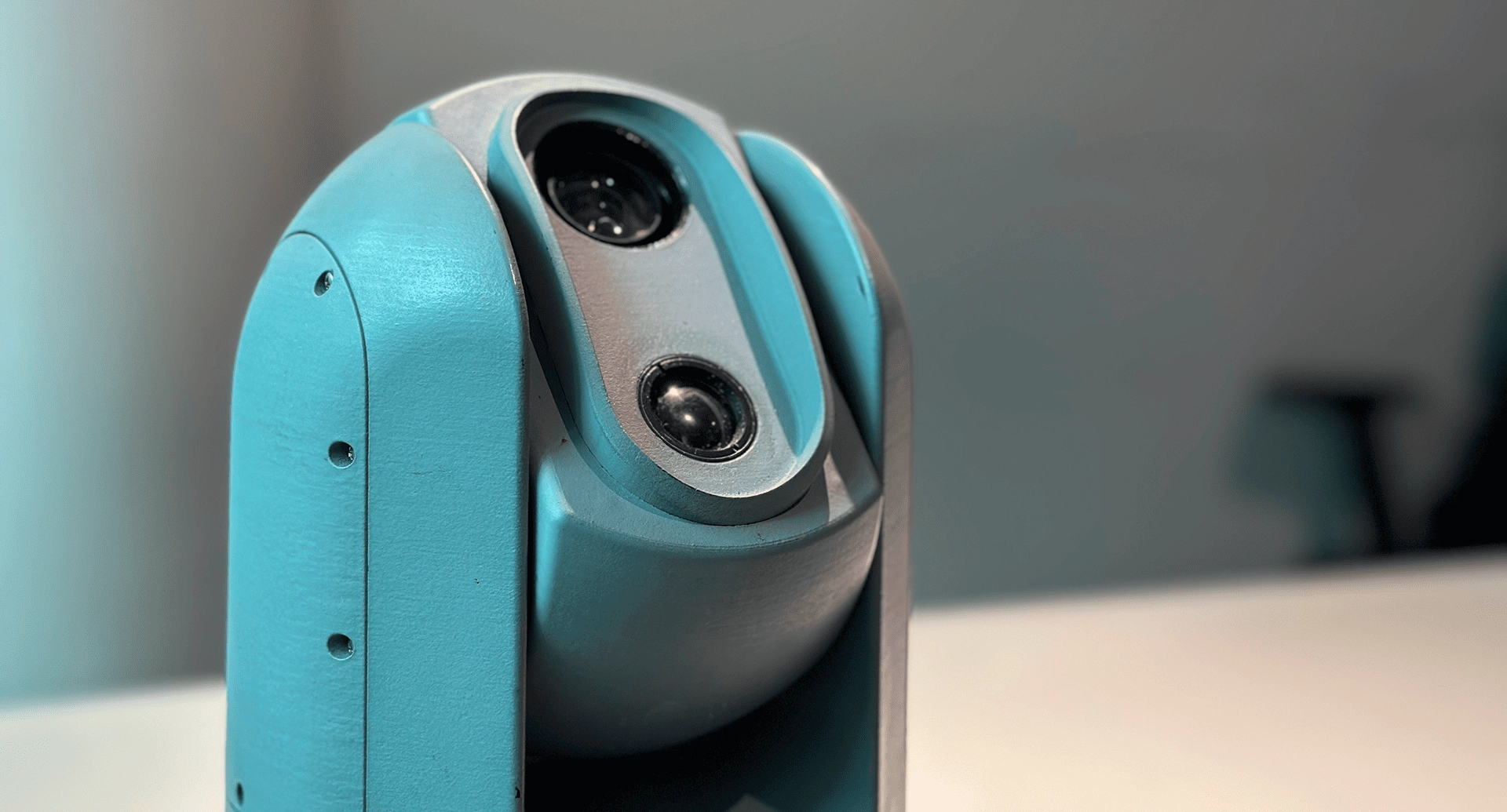

MAС VIEW
The perfect "eyes" for our maritime drones. The MAС VIEW innovative surveillance system was developed specifically for the Katran project and accounts for all nuances of maritime operations. The camera provides clear images day and night, featuring a thermal imager and optical zoom.
General Parameters
(6)Height
310 mm
Width (at widest point)
208 mm
Rotation
360° horizontal, −30° to +90° vertical
Power Supply
24 V
Power consumption
<30 W
Connection type
IP / wired network
Operating Conditions
(5)Operating temperature
-20 C ~ +50 C
Storage temperature
+10 C ~ +25 C
Humidity
5%–95%, non-condensing
Vibration
6.06 g, multi-axis
Shock resistance
80 g, 4 ms, sawtooth terminal peak pulse, 6 directions
Thermal Camera
(9)Resolution / pixel pitch
640 × 480, 17 μm
Field of view (FOV)
32⁰ х 22.9⁰
Focal length
19 mm
F-number
1.1
Thermal sensitivity (NETD)
<30 mK (f/1.0, 300 K, 30 Hz)
Non-uniformity correction (NUC)
shutterless, calibrated from −20°C to +55°C
Power supply
DC 12V
Sensor
CMOS
Sensor resolution
8.0 MP
Day Camera
(8)Focal length
5-95 мм
Optical zoom
18X
Focus Control
Zoom Control from Ground Controller
White balance
auto
Sensor
1/2.8” CMOS, 8 MP
Video resolution
up to 1080p, 30 fps
Field of view: Wide, Narrow
58° х 35° 3,3° х 1,9°
Video streaming
H.264 (RTSP), MJPEG
