MAC View mini
MAC View mini

Drone Cameras

MAC View mini

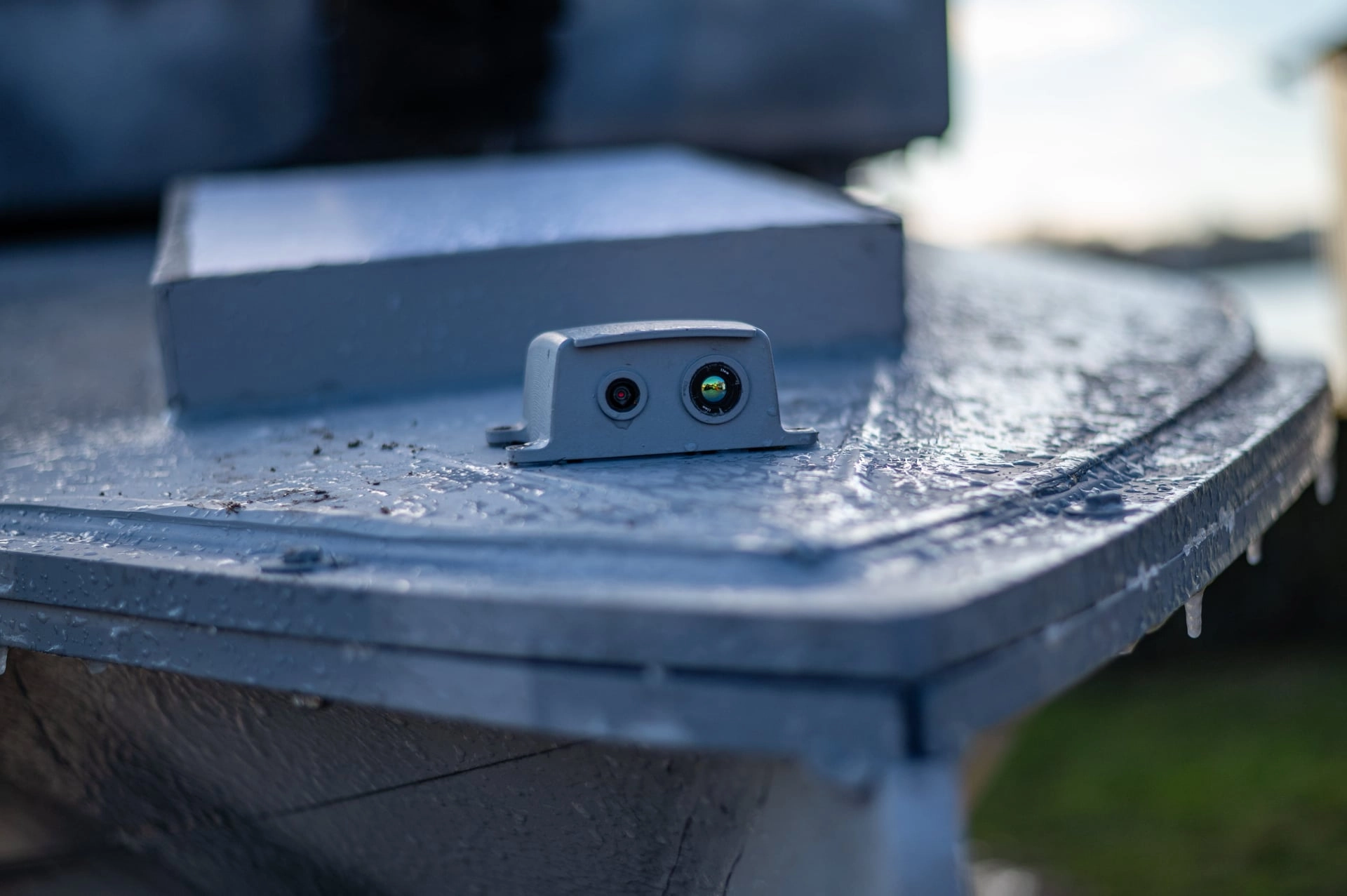

MAC View mini reinforces the primary camera of the maritime drone. This complete surveillance system functions in harsh weather conditions and includes a built-in thermal imager.

Загальні параметри
(6)

  • Height

    54 mm

  • Width

    128 mm

  • Length

    95 mm

  • Power supply

    12-24 V

  • Connection type

    IP / wired network

  • Power consumption

    <10 W

Operating Conditions
(5)

  • Operating temperature

    -20 C ~ +50 C

  • Storage temperature

    +10 C ~ +25 C

  • Humidity

    5%–95%, non-condensing

  • Vibration

    6.06 g, multi-axis

  • Shock resistance

    80 g, 4 ms, sawtooth terminal peak pulse, 6 directions

Thermal Camera
(4)

  • Resolution

    640 × 512 pixels

  • Field of view

    • 50⁰ horizontally

    • 39⁰ vertically

  • Focal length

    9 mm

  • Thermal sensitivity (NETD)

    <40 mK

Day Camera
(9)

  • Focal length

    2.8 mm

  • Optical zoom

    30X

  • Focus Control

    Zoom Control from Ground Controller

  • White balance

    auto

  • Sensor

    1/2.8” CMOS, 8 MP

  • Video resolution

    up to 1080p, 30 fps

  • Minimum Illumination

    Color: 0.01 Lux; B/W: 0.001 Lux

  • Video streaming

    H.264 (RTSP), MJPEG

  • Field of view

    90° х 60°
